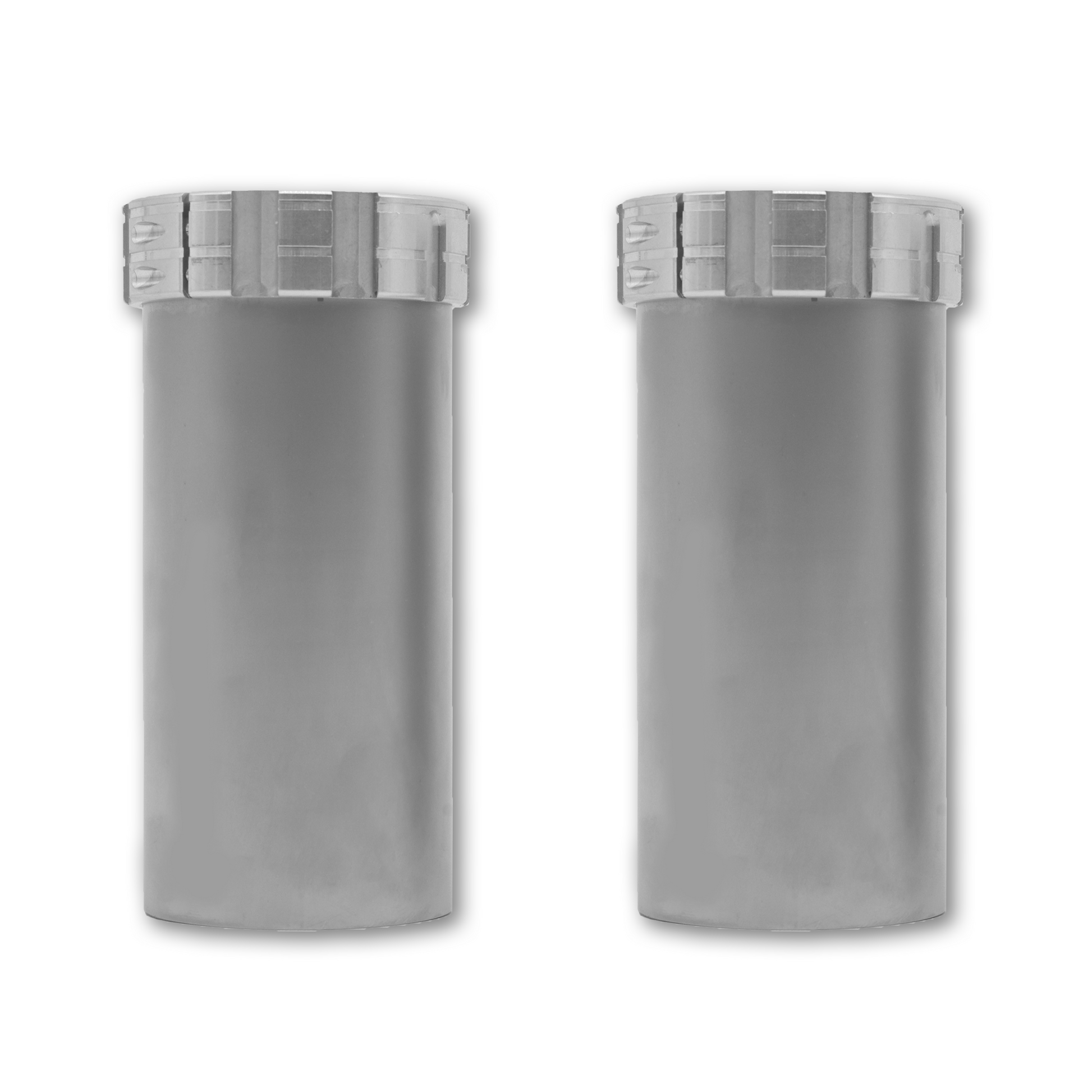

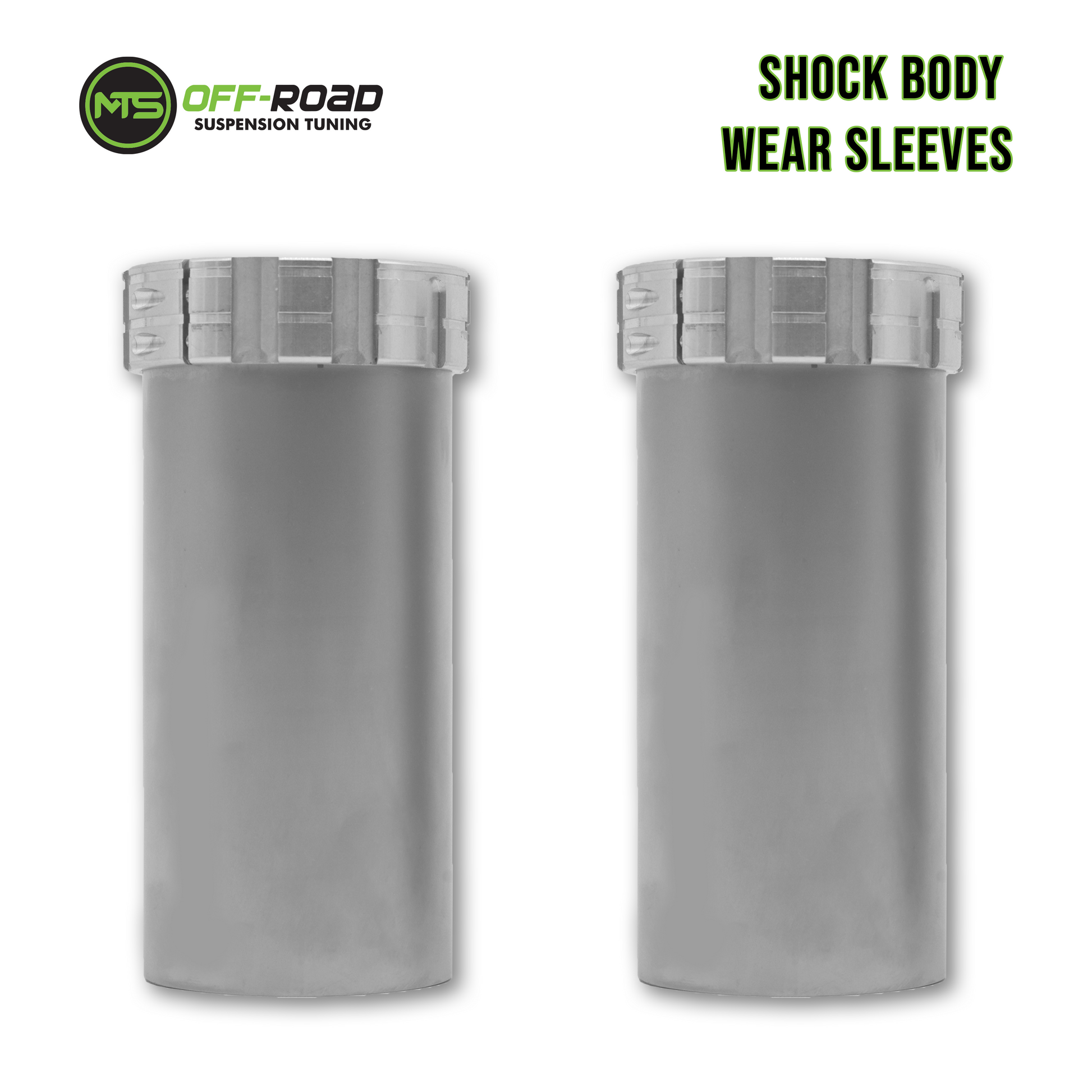

Shock Size Guide for MTS Offroad Wear Sleeve Kits
|
| POLARIS |
Shock Make |
Front Shock Size |
Front Spring Size |
Rear Shock Size |
Rear Spring Size |
| 800 4 SEAT |
Fox |
2.0" |
2.5" |
2.0" |
2.5" |
| XP900 2 SEAT FOX |
Fox |
2.0" |
2.5" |
2.0" |
2.5" |
| XP900 2 SEAT W/E |
Walker Evans |
2.0" |
3.0" |
2.5" |
3.0" |
| XP900 4 SEAT FOX |
Fox |
2.0" |
2.5" |
2.0" |
2.5" |
| XP900 4 SEAT W/E |
Walker Evans |
2.0" |
3.0" |
2.5" |
3.0" |
| 2014-2016 XP1000 2 SEAT WALKER |
Walker Evans |
2.0" |
3.0" |
2.5" |
3.0" |
| 2014-2016 XP1000 4 SEAT WALKER |
Walker Evans |
2.0" |
3.0" |
2.5" |
3.0" |
| 2015 XP1000 FOX EDITION |
Fox |
2.5" |
3.0" |
3.0" |
3.55" |
| 2016-2018 XPT 2 SEAT FOX |
Fox |
2.5" |
3.0" |
3.0" |
3.55" |
| 2016-2018 XPT 4 SEAT FOX |
Fox |
2.5" |
3.0" |
3.0" |
3.55" |
| 900S 2 SEAT FOX |
Fox |
2.0" |
2.5" |
2.0" |
2.5" |
| 900S 2 SEAT W/E |
Walker Evans |
2.0" |
2.5" |
2.0" |
2.5" |
| 900S 4 SEAT FOX |
Fox |
2.0" |
2.5" |
2.0" |
2.5" |
| 900S 4 SEAT W/E |
Walker Evans |
2.0" |
2.5" |
2.0" |
2.5" |
| 1000S FOX 2 SEAT |
Fox |
2.0" |
2.5" |
2.0" |
2.5" |
| 1000S WALKER EVANS 2 SEAT |
Walker Evans |
2.0" |
2.5" |
2.0" |
2.5" |
| 1000S FOX 4 SEAT |
Fox |
2.0" |
2.5" |
2.0" |
2.5" |
| 1000S WALKER EVANS 4 SEAT |
Walker Evans |
2.0" |
2.5" |
2.0" |
2.5" |
| GENERAL 2 SEAT FOX |
Fox |
2.0" |
2.5" |
2.0" |
2.5" |
| GENERAL 2 SEAT W/E RESERVOIR SHOCK |
Walker Evans |
2.0" |
2.5" |
2.0" |
2.5" |
| GENERAL 4 SEAT FOX |
Fox |
2.0" |
2.5" |
2.0" |
2.5" |
| GENERAL 4 SEAT W/E RESERVOIR SHOCK |
Walker Evans |
2.0" |
2.5" |
2.0" |
2.5" |
| 2017 HIGHLIFTER 2 SEAT |
Walker Evans |
2.0" |
3.0" |
2.5" |
3.0" |
| 2017 HIGHLIFTER 4 SEAT |
Walker Evans |
2.0" |
3.0" |
2.5" |
3.0" |
| 900 TRAIL 2 SEAT |
Fox |
2.0" |
2.5" |
2.0" |
2.5" |
| 2017-2018 XP1000 2 SEAT W/E |
Walker Evans |
2.0" |
3.0" |
2.5" |
3.0" |
| 2017-2020 XP1000 4 SEAT W/E |
Walker Evans |
2.0" |
3.0" |
2.5" |
3.0" |
| 2017-2020 HIGHLIFTER 2 SEAT |
Walker Evans |
2.0" |
3.0" |
2.5" |
3.0" |
| 2017-2020 HIGHLIFTER 4 SEAT |
Walker Evans |
2.0" |
3.0" |
2.5" |
3.0" |
| 2018-2020 XPT 2 SEAT W/E |
Walker Evans |
2.0" |
3.0" |
2.5" |
3.0" |
| 2018-2020 XPT 4 SEAT W/E |
Walker Evans |
2.0" |
3.0" |
2.5" |
3.0" |
| 2018-2019 XPT 2 SEAT FOX IBP |
Fox |
2.5" |
3.0" |
3.0" |
3.55" |
| 2018-2019 XPT 4 SEAT FOX IBP |
Fox |
2.5" |
3.0" |
3.0" |
3.55" |
| 2018-2020 XPT DYNAMIX 2 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| 2018-2020 XPT DYNAMIX 4 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| 2018-2019 TURBO S DYNAMIX 2 SEAT |
Fox |
2.5" |
3.0" |
3.0" |
3.55" |
| 2018-2019 TURBO S DYNAMIX 4 SEAT |
Fox |
2.5" |
3.0" |
3.0" |
3.55" |
| RS1 |
Walker Evans |
2.0" |
3.0" |
2.5" |
3.0" |
| 2018-2019 XP1000 ROCK EDITION W/E |
Walker Evans |
2.0" |
3.0" |
2.5" |
3.0" |
| 2019-2020 XP1000 2 SEAT W/E |
Walker Evans |
2.0" |
3.0" |
2.5" |
3.0" |
| 2019-2020 XP1000 4 SEAT W/E |
Walker Evans |
2.0" |
3.0" |
2.5" |
3.0" |
| 2019+ TURBO S VELOCITY 2 SEAT |
Walker Evans |
2.5" |
3.0" |
3.0" |
3.55" |
| 2019+ TURBO S VELOCITY 4 SEAT |
Walker Evans |
2.5" |
3.0" |
3.0" |
3.55" |
| 2019-2024 PRO XP 2 SEAT FOX LIVE VALVE |
Fox |
2.5" |
3.0" |
2.55" |
3.0" |
| 2019-2024 PRO XP 4 SEAT FOX LIVE VALVE |
Fox |
2.5" |
3.0" |
2.55" |
3.0" |
| 2019-2024 PRO XP 2 SEAT W/E |
Walker Evans |
2.0" |
3.0" |
2.5" |
3.0" |
| 2019-2024 PRO XP 4 SEAT W/E |
Walker Evans |
2.0" |
3.0" |
2.5" |
3.0" |
| 2023 PRO XP SPORT 4 SEAT QS3 |
Walker Evans |
2.1" |
3.0" |
2.5" |
3.0" |
| 2021 GENERAL XP1000 VELOCITY 2 SEAT |
Walker Evans |
2.0" |
3.0" |
2.5" |
3.0" |
| 2021 GENERAL XP1000 VELOCITY 4 SEAT |
Walker Evans |
2.0" |
3.0" |
2.5" |
3.0" |
| 2020-2021 TURBO S DYNAMIX 2 SEAT |
Fox |
2.5" |
3.0" |
3.05" |
3.55" |
| 2020-2021 TURBO S DYNAMIX 4 SEAT |
Fox |
2.5" |
3.0" |
3.05" |
3.55" |
| 2019-2020 NON-TURBO DYNAMIX 2 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| 2019-2020 NON-TURBO DYNAMIX 4 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| PRO R 2 SEAT DYNAMIX |
Fox |
3.05" |
3.75" |
N/A |
N/A |
| PRO R 4 SEAT DYNAMIX |
Fox |
3.05" |
3.75" |
N/A |
N/A |
| PRO R 2 SEAT WALKER EVANS |
Walker Evans |
2.5" |
3.75" |
3.0" |
3.75" |
| PRO R 4 SEAT WALKER EVANS |
Walker Evans |
2.5" |
3.75" |
3.0" |
3.75" |
| TURBO R 2 SEAT DYNAMIX |
Fox |
3.05" |
3.75" |
N/A |
N/A |
| TURBO R 4 SEAT DYNAMIX |
Fox |
3.05" |
3.75" |
N/A |
N/A |
| TURBO R 2 SEAT WALKER EVANS |
Walker Evans |
2.5" |
3.75" |
3.0" |
3.75" |
| TURBO R 4 SEAT WALKER EVANS |
Walker Evans |
2.5" |
3.75" |
3.0" |
3.75" |
| 2023+ RZR XP 4 SEAT WALKER EVANS |
Walker Evans |
2.0" |
3.0" |
2.5" |
3.0" |
| 2023+ RZR XP 2 SEAT WALKER EVANS |
Walker Evans |
2.0" |
3.0" |
2.5" |
3.0" |
| EXPEDITION 4 SEAT |
Fox |
2.1" |
3.0" |
2.5" |
3.0" |
| 2022 PRO XP SPORT 2 SEAT QS3'S |
Fox |
2.1" |
3.0" |
2.55" |
3.0" |
| EXPEDITION 4 SEAT W/ THUMPER FAB LONG TRAVEL |
Fox |
2.1" |
3.0" |
2.55" |
3.0" |
| CAN-AM |
Shock Make |
Front Shock Size |
Front Spring Size |
Rear Shock Size |
Rear Spring Size |
| COMMANDER 2 SEAT 2.0 |
Fox |
2.0" |
2.5" |
2.0" |
2.5" |
| MAVERICK 2.0 2 SEAT |
Fox |
2.0" |
2.5" |
2.0" |
2.5" |
| MAVERICK 2.5 2 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| MAVERICK 2.5 4 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| MAVERICK TRAIL/XC 2 SEAT |
Fox |
2.0" |
2.5" |
2.0" |
2.5" |
| DS TURBO 2 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| DS TURBO 4 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| 2017-2019 X3 BASE 2 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| 2017-2019 X3 BASE 4 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| 2017-2019 X3 DS 2 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| 2017-2019 X3 DS 4 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| 2017-2019 X3 RS 2 SEAT |
Fox |
2.5" |
3.0" |
3.0" |
3.75" |
| 2017-2019 X3 RS 4 SEAT |
Fox |
2.5" |
3.0" |
3.0" |
3.75" |
| 2017-2019 X3 MR 64" 2 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| 2017-2019 X3 RC 64" 2 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| 2017-2019 X3 MR 72" 4 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| 2017-2019 X3 RC 72" 2 SEAT |
Fox |
2.5" |
3.0" |
3.0" |
3.75" |
| X3 900 |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| 2020-2021 X3 DS TURBO RR RC2 2 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| 2020-2021 X3 DS TURBO RR RC2 4 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| X3 RS TURBO RR 2 SEAT |
Fox |
2.5" |
3.0" |
3.0" |
3.75" |
| X3 RS TURBO RR 4 SEAT |
Fox |
2.5" |
3.0" |
3.0" |
3.75" |
| 2020-2021 X3 MR TURBO RR 64" QS3 2 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| 2020-2021 X3 RC TURBO RR 72" 2 SEAT |
Fox |
2.5" |
3.0" |
3.0" |
3.75" |
| 2020-2021 X3 MR TURBO RR 72" 2 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| 2020-2021 X3 DS TURBO R QS3 2 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| 2020-2021 X3 DS TURBO R QS3 4 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| 2020-2021 X3 RS TURBO R QS3 72" 2 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| 2020-2021 X3 RS TURBO R QS3 72" 4 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| 2019/2020 MAVERICK 2.5 X-XC 2 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| 2019/2020 MAVERICK 2.5 X-MR 2 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| 2019/2020 MAVERICK 2.5 X-RC 2 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| 2019/2020 MAVERICK 2.0 SPORT/DPS 2 SEAT |
Fox |
2.0" |
2.5" |
2.0" |
2.5" |
| 2021 X3 RS TURBO RR SMART SHOCK 2 SEAT |
Fox |
2.5" |
3.0" |
3.0" |
3.75" |
| 2021 X3 RS TURBO RR SMART SHOCK 4 SEAT |
Fox |
2.5" |
3.0" |
3.0" |
3.75" |
| 2021 COMMANDER XT-P 2 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| 2020 MAVERICK SPORT MAX |
Fox |
2.0" |
2.5" |
2.0" |
2.5" |
| 2021 COMMANDER XT-P 4 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| YAMAHA |
Shock Make |
Front Shock Size |
Front Spring Size |
Rear Shock Size |
Rear Spring Size |
| YXZ 1000R BASE RC2 |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| YXZ 1000R SS OR SE X2 |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| WOLVERINE RMAX 1000/SPEC/XT-R 2 SEAT |
Fox |
2.1" |
2.5" |
2.1" |
2.5" |
| WOLVERINE RMAX 1000/SPEC/XT-R 4 SEAT |
Fox |
2.1" |
2.5" |
2.1" |
2.5" |
| RMAX LIMITED 2 SEAT |
Fox |
2.1" |
2.5" |
2.1" |
2.5" |
| RMAX LIMITED 4 SEAT |
Fox |
2.1" |
2.5" |
2.1" |
2.5" |
| RMAX SPORT 2 SEAT KIT |
Fox |
2.1" |
2.5" |
2.1" |
2.5" |
| TEXTRON |
Shock Make |
Front Shock Size |
Front Spring Size |
Rear Shock Size |
Rear Spring Size |
| WILDCAT XX 2 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| KAWASAKI |
Shock Make |
Front Shock Size |
Front Spring Size |
Rear Shock Size |
Rear Spring Size |
| KRX 2 SEAT |
Fox |
2.55" |
3.0" |
N/A |
N/A |
| KRX 2 SEAT LIVE VALVE |
Fox |
2.55" |
3.0" |
N/A |
N/A |
| KRX 4 SEAT LIVE VALVE |
Fox |
2.55" |
3.0" |
N/A |
N/A |
| KRX 4 SEAT |
Fox |
2.55" |
3.0" |
N/A |
N/A |
| HONDA |
Shock Make |
Front Shock Size |
Front Spring Size |
Rear Shock Size |
Rear Spring Size |
| TALON 1000R 4 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| TALON 1000X 2 SEAT |
Fox |
2.0" |
2.5" |
2.0" |
2.5" |
| TALON 1000R 2 SEAT |
Fox |
2.5" |
3.0" |
2.5" |
3.0" |
| TALON 1000X LIVE VALVE 4 SEAT |
Fox |
2.5" |
3.0" |
2.55" |
3.0" |
| TALON 1000X 4 SEAT |
Fox |
2.0" |
2.5" |
2.55" |
3.0" |
| TALON 1000R 2 SEAT LIVE VALVE |
Fox |
2.5" |
3.0" |
2.55" |
3.0" |
| TALON 1000X 2 SEAT LIVE VALVE |
Fox |
2.5" |
3.0" |
2.55" |
3.0" |
| 2021+ TALON 1000X NON LIVE VALVE |
Fox |
2.0" |
2.5" |
2.0" |
2.5" |
| TALON 1000R 4 SEAT LIVE VALVE |
Fox |
2.5" |
3.0" |
2.55" |
3.0" |
